Baileigh
Baileigh SBR-3020 - 3 in 1 Combination Shear Brake and Roll. 30" Bed Width, 20 Gauge Mild Steel Capacity
Item ID: BLI1006958
Free Item Included
Compare Products
Baileigh
Baileigh SBR-3020 - 3 in 1 Combination Shear Brake and Roll. 30" Bed Width, 20 Gauge Mild Steel Capacity
Item ID:
BLI1006958

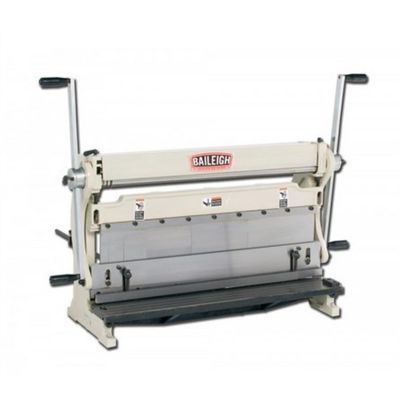

Baileigh SBR-3020 - 3 in 1 Combination Shear Brake and Roll. 30" Bed Width, 20 Gauge Mild Steel Capacity
Features and Benefits:�30” working widthfor manual shear, press brake, and roll.�Maximum capacity of20 gauge mild steeland 16 gauge aluminum for all functions.�Slip roll portion has3 wire grooves.�Forms rollsdown to 1.54”in diameter.�Vertical press brake portionbends up to 90°, so you can make perfect corners.�Adjust the camber of the toolingto keep pressure in the middle for a consistent bend across the full width.�Press brake portion includes a V die set with corresponding punch die on top to make a90° bend.�Movable fingerson the top beam, ranging from 1” to 10-?”, can make many box sizes.�On the shear portion, aspring-loaded hold-downhelps reduce burr on the cut and prevent waste.Slip roll on top. Press brake in the middle. Shear on the bottom. This 3-in-1 combo machinesaves space. The Baileigh SBR-3020 brake shear roller combo is a great choice for small shops withlow production runs and one-off projects.
| Weight | 340.000000 |
|---|---|
| Brand | Baileigh |
| In Stock | Yes |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
