Features and Benefits:

• Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
• Includes Autel LDW physical pattern and target kit.
• Includes three 27-inch attachable monitors and the Autel digital LDW target kit.
• Includes MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 and IA1000 Alignment and ADAS software upgrade
• Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.
• Unit provides one-step robotic and vertical LDW target placement via physical targets or with the included 27-inch attachable monitors, significantly reducing manual operation and setup time.
• Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
• Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles.
• Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
• Includes one-year limited warranty

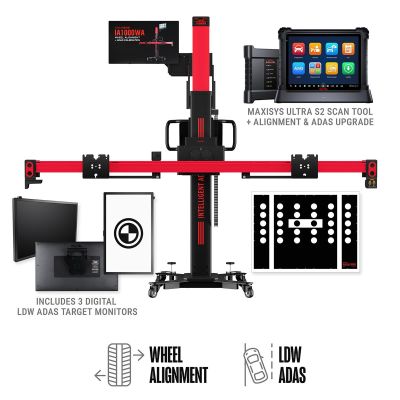

The Autel MaxiSYS IA1000LDWTDT package features the IA1000 automated alignment and ADAS calibration system.

Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000 boasts robotic forward-facing camera target positioning, and laser-guided ACC, blind spot calibrator, and AVM mat placement, plus unlevel floor compensation. Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.

The IA1000, which includes a 24” touchscreen display that attaches to the frame unit, can perform four-wheel alignment and ADAS calibration for U.S., Asian, and European vehicles.

Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet, the IA1000 offers extensive U.S., Asian, and European vehicle 4-wheel alignment coverage, and industry-leading ADAS calibration coverage.

The Ultra S2 tablet ships with the MaxiFlash VCMI2 6-in-1 communication and measurement device and includes IA1000 alignment, and static and dynamic ADAS calibration software coverage.

The IA1000 unit provides one-step robotic and vertical LDW target placement via physical targets or with included 27-inch attachable monitors, significantly reducing manual operation and setup time.

The IA1000LDWTDT includes one year of free Ultra S2 software updates and is covered by a one-year limited warranty.

Learn about Autel MaxiSys ADAS IA1000 System Packages

Watch a video about Autel MaxiSys ADAS IA1000 System

Includes:

• IA1000 Calibration Frame
• Accessories
• Ultra S2 Tablet
• IA1000 Activation Card
• LDW Targets
• Digital Targets (3 Monitors)
• Digital Target Activation Card
