Atlas Automotive Equipment Atlas Equipment HI-RISE 1500 Motorcycle/ATV 1,500 lb. Capacity Lift (WILL CALL)
Atlas Automotive Equipment Atlas Equipment HI-RISE 1500 Motorcycle/ATV 1,500 lb. Capacity Lift (WILL CALL)
Features & Benefits
- 1,500 lb. Capacity
- Extra Tall 42 1/2" Full Lift Height
- Diamond Plate Surface
- Air/Hydraulic Operated (Pump Included, External Air Supply Required)
- 6 Locking Heights
- Chopper Extension Included
- Side Extension Kit Included
- Removeable Drop Out Section
- Front Wheel Vise Included
- Portable with 4 Retractable Casters
- 1 Year Warranty
- Shipping Weight: 800 lbs.
- This part number WILL CALL ONLY

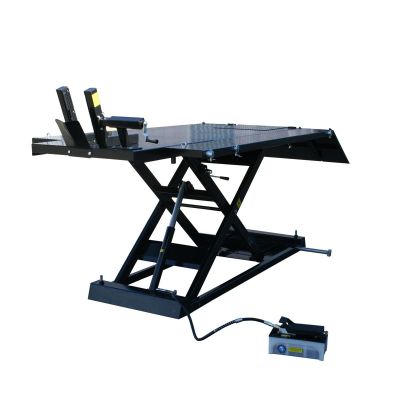

The Atlas® HI-RISE 1500 is one of the industry's most popular motorcycle and ATV lifts. This lift has a manufacturer rating of 1650 lbs. but we rate the lift at 1500 lbs., because we always under rate our weight capacities. The HI-RISE 1500 is powered by a high quality air/hydraulic pump which is included. This lift requires 100 PSI from an outside air source (not included).
The Atlas® HI-RISE 1500 has an extra tall lift height of 43 inches. This increased lifting height makes it easier to work on vechicles while the operator is standing. This lift comes standard with a chopper extension making the center table 100 3/4 inches long and able to accept some of the longest choppers. The lift also comes standard with a side extension kit, with an overall table width of 51 1/8 inches, and is able to easily lift ATV's, UTV's, Golf Carts, Lawnmowers and other four wheel vehicles. The HI-RISE 1500 is the perfect addition to any service department of professional motorcycle dealers or equipment service shop or even a homeowner who wants to work on bikes or ATV's in their own garage.
This is a complete motorcycle/ATV lift and besides the features above includes an adjustable front (padded) wheel vise and a removable rear drop out section. The Atlas® HI-RISE 1500 has a wide solid base for greater stability and which incorporates screw casters that can be lowered to move the lift and retracted when working.
Atlas® HI-RISE 1500 Specifications:- Capacity: 1500 lbs
- Lifting Height: 42 1/2"
- Center Table Width: 29 1/2"
- Table Width w/ Side Extensions: 51 1/8"
- Length w/ Ramp: 125" (10' 5")
- Center Table Length (with Chopper Extension): 99 3/4" (8' 3 3/4")
- Side Extension Length: 88 1/2" (7' 4 1/2")
- Lowered Height: 8 1/8"
- Base of Lift: L 87 1/2" x W 29 1/2" x T 4 1/4"
- Air Requirement: 90-100 PSI
- Shipping Weight: 800 lbs
Accessories Available
Weight | 800.000000 |
---|---|
Brand | Atlas Automotive Equipment |
In Stock | In Stock |
