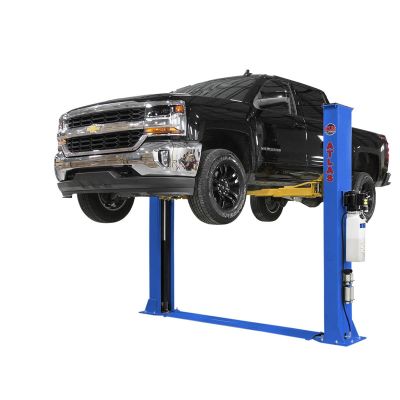

The Atlas Platinum AP-PVL9BP lb. Baseplate lift is designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings. This lift is ALI certified and backed by one of the Industry’s best warranties for an added piece of mind.

AP-PVL9BP (Manufacturer Part #)

The AP-PVL9BP can lift a range of the most common vehicles on the market both foreign and domestic while also having the capacity to handle both full-size pickups and commercial vehicles. Features of the AP-PVL9BP Include:

• 9,000 Lb. Capacity
• Symmetric Arms
• Base Plate Design
• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System (SLS)
• Free 8 Piece Truck Adapter Set
• Automatic Arm Restraints
• Dual Point Lock Release
• Designed for Low Ceiling Clearance – 9’ 3 1/8” Columns
• Mounting Hardware Included
• Shipping Weight: 1,700 lbs.

The AP-PVL9BP comes with a premium ALLY Hydraulic power unit, these units are certified by MET Laboratories to meet UL201 compliance standards. The ALLY power unit also features:

• 2.1 Gallons per Minute flow rate
• 208 – 230 volt single phase (60 Hz).
• 2 hp 3450 rpm motor (3.5 hp motor torque equivalent).
• 3.5 – Gallon opaque high-density plastic tank
• Pressure settings from 2300 to 3500 PSI.
• Extra-large junction box for easy installation
• Extra Heavy-Duty Honeywell BE22Q1-AL off/on switch.
• Suction tube micro screen filter

Warranty:

5 year structural

2 year hydraulic
