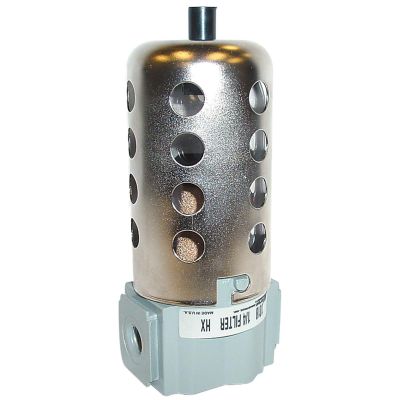

Milton Industries Filter 1/2" NPT
Item ID:
MIL1020
Milton Industries Filter 1/2" NPT
Features and Benefits:
- Chrome plated brass
- Maximum pressure of 250 pounds per square inch
- Maximum of 48 standard cubic feet per minute at 100 pounds per square inch
- Install upstream from regulators
- Can be set up as a modular unit as well
Milton's 1/2" NPT High Pressure Regulator offers a stable downstream air pressure over a wide range of air flows with accurate control, fast response time and minimal pressure drop. Offset gauge ports can also serve as two 1/4" supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. As a high pressure regulator, the 1/2" NPT High Pressure Regulator has a maximum inlet pressure of 250 PSI and a regulated pressure range of 10-250 PSI.
| Weight | 1.050000 |
|---|---|
| Brand | Milton Industries |
| Style | System |
| Air Inlet Size | 1/2" NPT |
| Drain Type | Automatic |
| Filter body Material | Bronze |
| Gauge Included | No Guage |
| Maximum Operating Temeprature | 40F - 120F |
| Maximum Pressure in PSI | 150 PSI |
| Number Of Outlets | 1 Outlet |
| Air Outlet Size | 1/2" NPT |
| Bowl Capacity | 5 ounce |
| Bowl Material | Metal |
| Filtration micron size | 40 Micron |
| Number Of Stages | Single Stage |
| Flow in CFM | 100 SCFM |
| Item | Air Filter |
