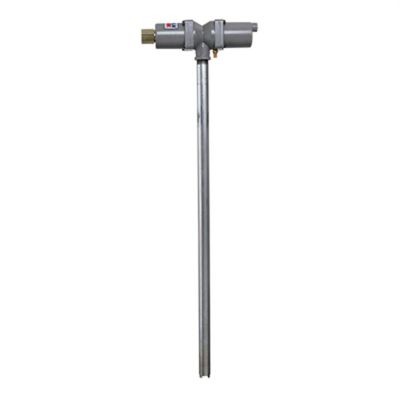

Lincoln Lubrication Air Operated Single Acting Oil Pump
Item ID:
LIN4475
Lincoln Lubrication Air Operated Single Acting Oil Pump
Featuresand Benefits:
- Operation: Pneumatic fluid delivery stroke, spring return stroke
- Material outlet: 3/8" or 1/2' NPTF
- Attachment: 2" bung, adj. for 55 & 16 gallon drums, bench & portable tanks
- Effective pump ratio: Approximately 0.7:1 to 0.8:1 depending on inlet air pressure
- Inlet air pressure, Max: 120 psi (8.31 bar) / Min: 20 psig (1.4 bar)
Combine the pump with hoses, reels, dispense valves and other accessories for complete, low cost systems to meet specific vehicle service fluid dispensing needs. The Model 4475 pump is a reciprocating-piston, low-pressure single action pump. Air powers the pump’s piston on the dispensing, or working, stroke. An internal spring returns the piston and resets it for the working stroke. It pumps continuously when the dispensing (fluid outlet) valve is open and 20-120 psig air is supplied to the pump.
| Brand | Lincoln Lubrication |
|---|---|
| Body Material | STEEL |
| Graduations | 7:1-8:1 RATIO |
| Inlet Size | 1/2" NPT |
| Weight | 8.350000 |
| Dispensing Rate | 4 GPM |
| Pump Type | 4GPM |
| PSI Rating | 120PSI |
| Item | AIR POWERED BARE LUBE PUMP |
